ADVANCED RADIOTECH CORPORATION-industrial radio remote control systems

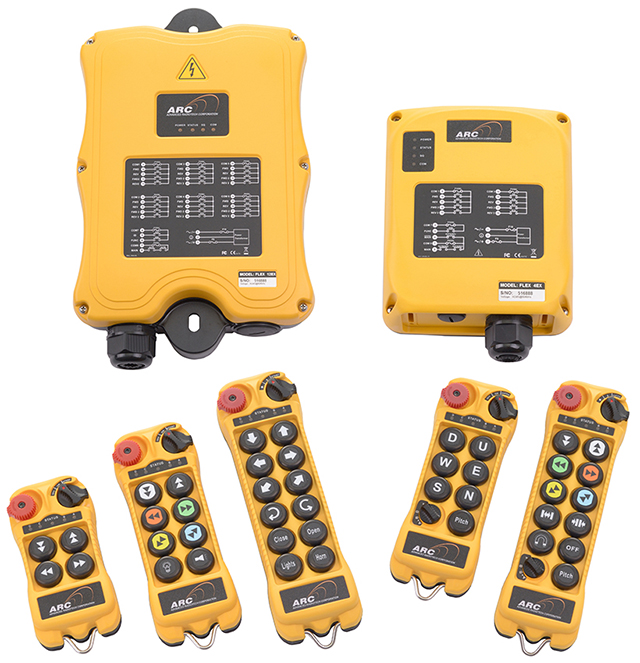

Flex ES/EX 系列 Features

Ergonomic & Lightweight

Durable & Rugged

Safe & Reliable

Fully Sealed Enclosures (IP-66)

62 User Programmable Channels

Automatic Channel Scanning Receiver

Unique I-CHIP Design

4-Stage Removable Power Key Switch

62 User Programmable Channels
Advanced synthesized RF controls with 62 built-in channels
set via pushbuttons and dipswitches.

Automatic Channel Scanning Receiver
The receiver is able to search and lock onto the newly
selected transmitter channel.

Over One Million Unique ID Codes (20Bit)
Each Flex ES/EX system has its own unique identification code, never repeats.

Advanced Controls
The Flex ES/EX system utilizes dual advanced microprocessor controls with 32bit CRC and
Hamming Code, providing ultra fast, safe, precise and error-free encoding and decoding.

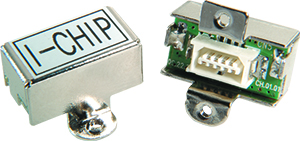

Unique I-CHIP Design
The I-CHIP functions similarly to a SIM card. Information and settings can be transferred between transmitters without the hassle of resetting the spares.

Full System Compatibility
The software and hardware are fully compatible regardless of model type, minimizing spare parts inventory.

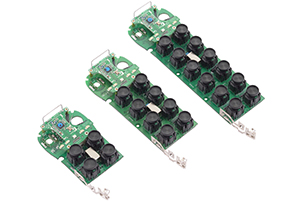

Reliable Pushbuttons
The in-house designed pushbuttons have gold plated contacts and are rated for more than one million press cycles. The defined snap-action steps provide positive tactile feedback even wearing gloves.

Low Power Consumption & Versatility
The transmitter requires only two "AA" alkaline batteries with more than 100 hours of operation. If rechargeable method is preferred, you can also opt for in-house designed rechargeable battery pack/charger kit, fully interchangeable.

Durable & Rugged Enclosures
All enclosures are made from industrial-strength nylon and fiberglass composite material. All housings meet the IP-66/ NEMA-4 requirements and are highly resistant to dirt, liquid, acid, alkali, grease and oil penetration.

Abundant Programmable Functions
Each system is equipped with more than 200 user-programmable functions to suit all types of applications. Custom functions can also be added upon request.

Pitch & Catch Operation
This standard-equipped function allows two operators controlling from opposite ends of a crane or equipment.

Channel Programming via Pushbuttons
Frequency channels can be reprogrammed directly via transmitter pushbuttons.

Rechargeable Options
The transmitter accepts both regular “AA” alkaline batteries or in-house designed 1000mAh Ni-MH rechargeable battery pack.

Tandem Operation
This function allows two operators controlling two cranes at the same time via a 3-stage A/B/A+B rotary select switch.

Random Access Operation
This function allows three operators randomly controlling three cranes on a first come - first served basis.

Multiple Receivers Operation
This function allows one operator controlling up to ten receivers or equipment at the same time.

Prewired Output Cable
A prewired output cable is standard equipment on all Flex ES/EX models.

Worldwide Approvals
The Flex ES/EX systems are fully tested and certified in accordance with the FCC Part-15 Rules and EU Safety Standards such as the EN 304 489-1&3, EN 300 220-1&2, EN 60950, EN 60529, EN 13849-1 Category PLd, etc...
